ESP32-S3 2.06inch AMOLED Touch Watch Development Board, with 410x502 Pixels 16.7M Color Display, Support 2.4 GHz Wi-Fi and BLE 5, Supports Offline Voice Recognition and AI Speech Interaction
4.8 (74 items)
Limited Time SaleUS$23.03 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 209074050 | Release Date | 2026/03/29 | List Price | US$15.36 | Model Number | 209074050 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

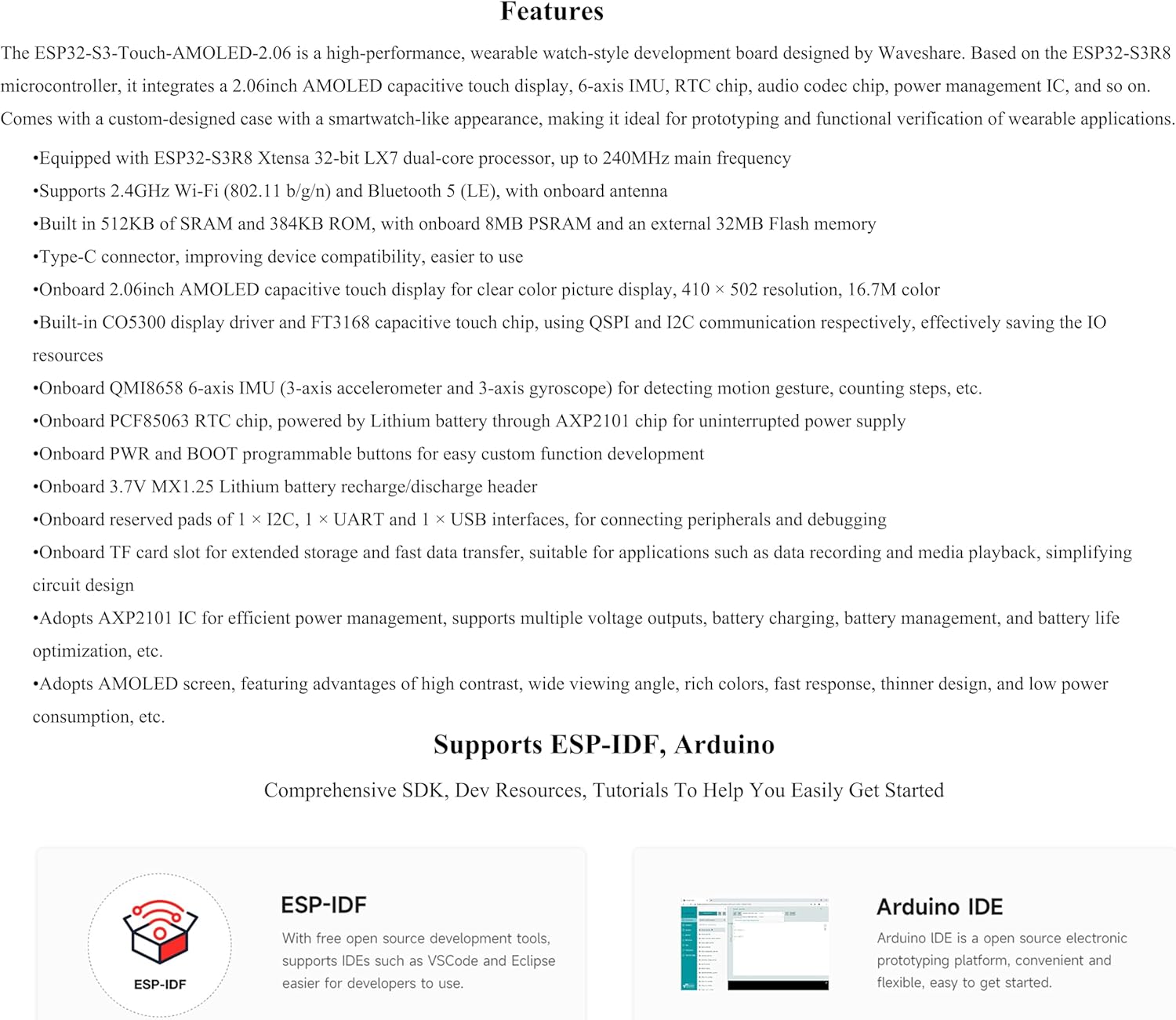

- ESP32-S3-Touch-AMOLED-2.06 is a high-performance, wearable watch-shaped development board. Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna.
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 32MB Flash memory. Type-C connector, improving device compatibility, easier to use. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design.

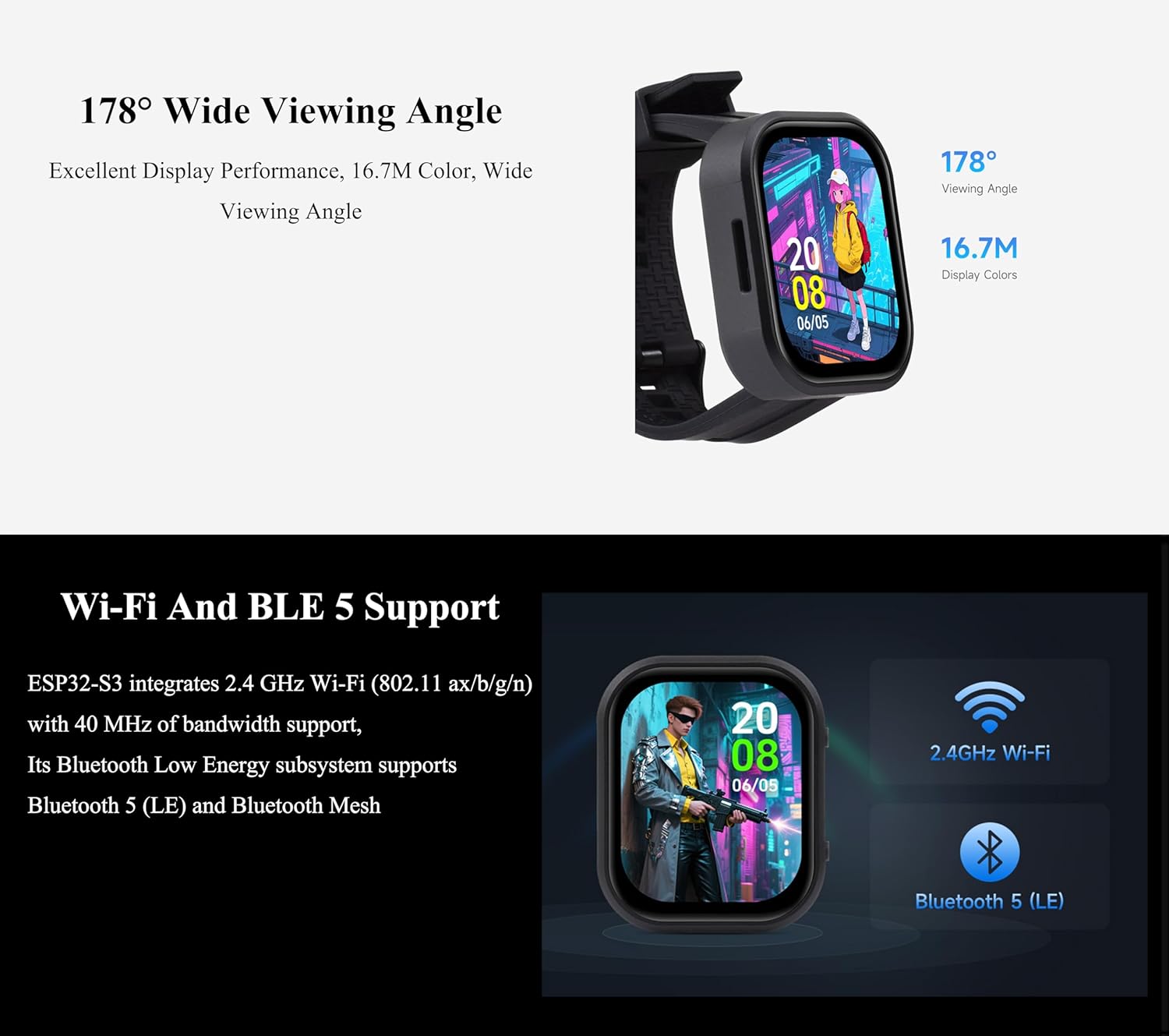

- Onboard 2.06inch AMOLED capacitive touch display for clear color picture display, 410 x 502 resolution, 16.7M color. Built-in CO5300 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources.
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc. Onboard PCF85063 RTC chip, powered by Lithium batt through AXP2101 chip for uninterrupted power supply. Onboard reserved pads of 1 x I2C, 1 x UART and 1 x USB interfaces, for connecting peripherals and debugging.
- Onboard PWR and BOOT programmable buttons for easy custom function development. Onboard 3.7V MX1.25 Lithium batt recharge/discharge header. Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, batt charging, batt management, and batt life optimization, etc.
- Note: ESP32-S3 2.06inch AMOLED Touch Watch Development Board is not a standard, pre-configured smart watch. It is a DIY module that requires the customer to develop their own application. Currently providing ArduinIDE and ESP-IDF two development tools and frameworks for flexible development options.
- Note: This version Doesn't include MX1.25 Lith batt. Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/ezz5c
| Brand | Wonrabai |
|---|---|
| Shape | Rectangular |
| Resolution | 410 x 502 |
| Screen Size | 2.06 Inches |
| Closure Type | Buckle |
| Display Type | AMOLED |
| Manufacturer | Wonrabai |
| Model Number | ESP32-S3-Touch-AMOLED-2.06-EN |
| Metrics Measured | Distance, Step Count |
| Compatible Devices | Smartphone |
| Additional Features | AMOLED Touch Display, Wi-Fi & Bluetooth Connectivity, 6-axis IMU, Rechargeable Battery |
| RAM Memory Installed | 512 KB |
| Wireless Compability | 802.11b/g, Bluetooth |
| Communication Feature | Bluetooth, Wi-Fi |
| Human Interface Input | Buttons, Microphone, Touchscreen |
| Supported Application | Fitness Tracker, Voice Assistant |
| Water Resistance Level | Not Water Resistant |
| Wearable Computer Type | Smart Watch |
| Compatible Phone Models | Compatible with iOS and Android devices |
| Connectivity Technology | Bluetooth, Wi-Fi |
| Memory Storage Capacity | 32 MB |
| GPS Geotagging Functionality | No GPS |
