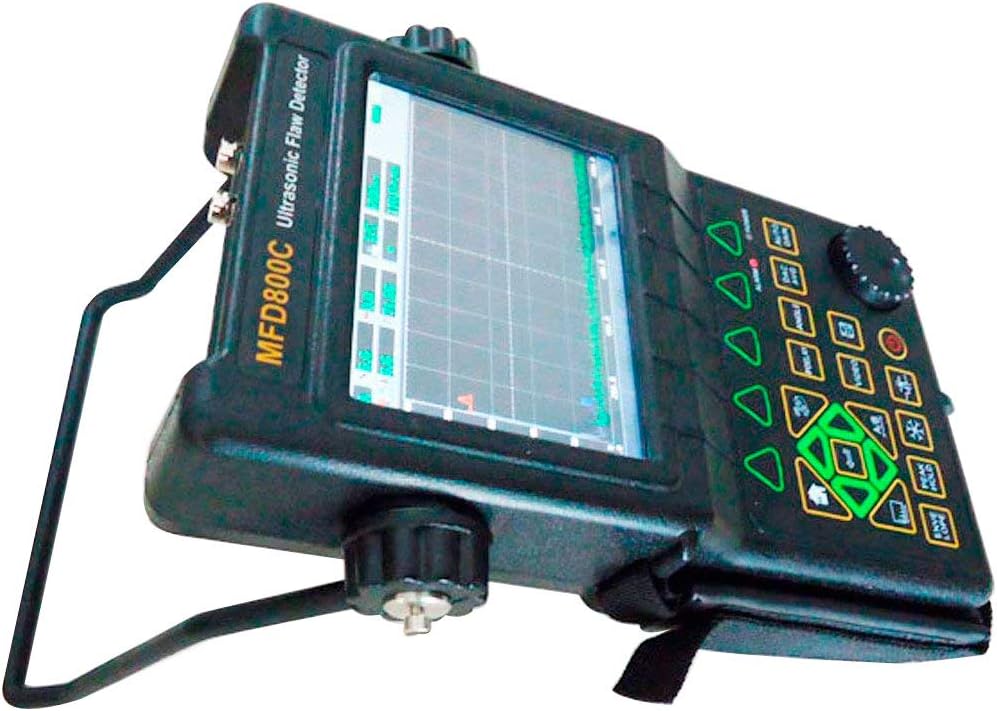

MFD800C Digital Ultrasonic Flaw Detector Metal Defectoscope 0-9999mm Range DAC AVG AWS D1.1

SpecificationRange: 0 to 9999 mm, at steel velocity Material Velocity: 1000to 15000m/sDisplay Delay: -20 to 3400 µsProbe Delay/Zero Offset : 0 to 99.99µsSensitivity Leavings: >62dB (flat-bottomed deep hole 200mm2)Resolution : >40dB (5P14)Noise Level: ≤8%Test Modes: straight ,angle, dual element and thru-transmissionPulse: Tunable Square Wave PulsePulse Repetition Frequency ranges from 10 Hz to 1000 HzPulse Energy: 200V, 300V, 400V, 500V, 600V selectableBandwidth (amplifier bandpass ): 0.2 to 20 MHzGate Monitors: Two independent gates controllable over entire sweep rangeRectification: Positive half wave, negative half wave, full wave, RFSystem Linearity: Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.Reject (suppression): 0 to 80% full screen heightUnits: Inch or millimeterTransducer Connections: BNC or LEMOPower Requirements: AC Mains 100-240 VAC, 50-60 HzOverall Dimensions:280H×220W×70D mmRelative Humidity:(20 ~ 95)% RHPower Supply:DC 9VOperating Temperature: -10℃ to 50℃Storage Temperature: -30℃ to 50℃MFD800C Standard ConfigurationMain Body with full digital TFT LCD Display x 1Straight Beam Probe 4 MHz, Φ10 x 1Angle Probe 4 MHz, 8 mm×9 mm, 60° x 1Machine-probe Cable Q9-C5,or optional C9- C5 x 1Battery Module 8.8 amp hour (MB-03) x 1Power Adapter (Charger) x 1Support Pillar x 1English Manual x 1Instrument Case x 1Data proceeding Software x 1USB communication Cable MUSB01 x 1

• Up to 9999 mm in steel; range selectable in fixed steps or continuously variable.
• MFD800C can be widely used in locating and sizing hidden cracks, voids, disbands, and similar discontinuities in welds, forgings, billets, axles, shafts, tanks and pressure vessels, turbines, and structural components.
• MFD800C incorporates many advanced signal processing features including a 15MHz RF bandwidth to permit testing of thin materials, narrowband filters to improve signal to noise in high gain applications, a spike pulser for applications requiring higher frequencies, and a tunable square wave pulser to optimize penetration on thick or highly attenuating materials.
• MFD800C combines powerful flaw detection and measurement capabilities, extensive data storage, and the ability to transfer detailed inspection data to the PC via its high-speed USB port.
• MFD800C is an advanced digital ultrasonic flaw detector featuring a multi-color TFT LCD and a host of new features to meet challenging inspection requirements.
