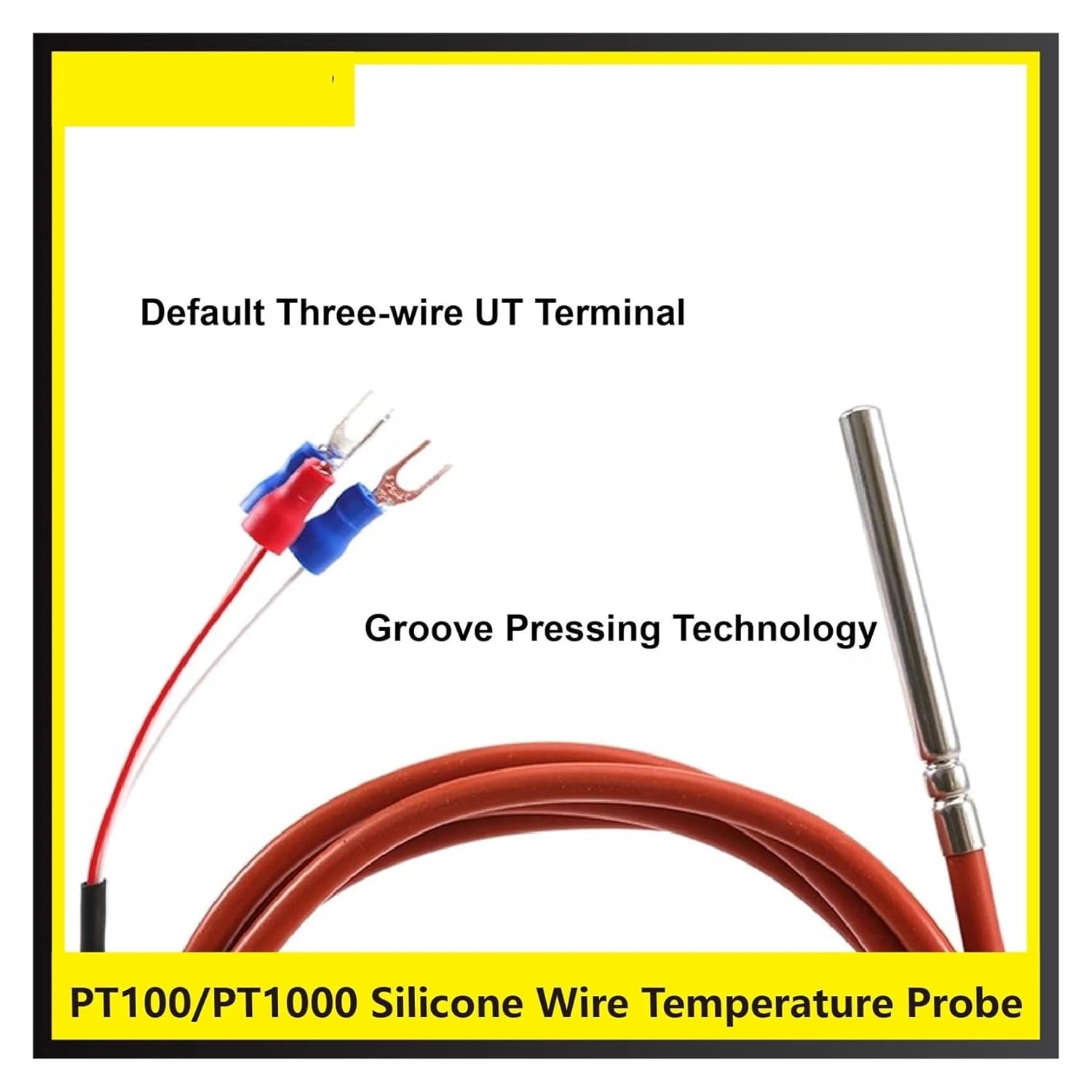

Pt100/Pt1000 Silicone Wire Temperature Probe Rtd Sensor Waterproof Platinum Resistance Thermometer 3 Wire 4

1.NOTEDefault Parameters:Graduation: PT100Probe Size: 5mm (D) * 50mm (L)Cable Length: 1-5mCable Material: Silicone WireCores: 3-core,U-type TerminalTemperature Resistance: -50~200°C"Customizable Options:"Graduation: PT1000Probe Diameter: Custom (4mm, 6mm, 8mm, etc.)Probe Length: Custom (100mm, 150mm, 200mm, etc.)Cable Length: Custom (10m, 15m, 20m, etc.)Cable Material: Silicone WireCores: 2-core / 4-core2.ParametersParameterSpecificationTemperature Range-50°C to 200°CResistance TypePT100 (default) / PT1000 (customizable)Probe Size5×50mm (customizable)Cable Length1-5m (customizable up to 20m)Cable MaterialSilicone-insulated wireWire Core3-core (default), 2-core/4-core (customizable)Probe MaterialStainless steel3. FeaturesWaterproof & Oilresistant Ensures durability in harsh environmentsHigh Temperature Resistance Operates in a wide range from -60°C to 260°C.High Sensitivity & Fast Response Imported chip for accurate and quick measurementCustomizable Design Various probe sizes, cable lengths, and wire cores available.Durable Stainless Steel Probe Provides long-term stability and reliability.4.ApplicationsIndustrial Equipment Temperature monitoring in machines and devices.Industry Accurate temperature measurement in harsh environments.Petroleum & Metallurgy Suitable for hightemperature monitoring in oil and metal refiningIndustry Precise temperature control in applications.5.FAQsQ1: Can I customize the probe size and cable length?A1: Yes, we offer custom probe sizes (4mm, 6mm, 8mm, etc.) and cable lengths Q2: Is this sensor suitable for outdoor use?A2: Yes, the waterproof and oil-resistant design makes it ideal for outdoor and industrial environments.Q3: Does it support two-wire or four-wire configurations?A3: The default is a three-wire design, but we also provide two-wire and four-wire options upon request.Origin : Mainland ChinaTemperature Range : -50°C to 200°CResistance Type : PT100 (default) / PT1000 (customizable)Probe Size : 5-50mm (customizable)Cable Length : 1-5m (customizable up to 20m)Cable Material : Silicone-insulated wireWire Core : 3-core (default), 2-core/4-core (customizable)Probe Material : Stainless steel

• Fast Response & High Sensitivity:Equipped with an imported chip for quick and accurate temperature readings.
• Customizable Design:Offers custom probe sizes, cable lengths, and wire cores for tailored applications.
• Resistance Thermometer Pt100|High Temperature Range:Operates from -60°C to 260°C, ideal for diverse temperature monitoring needs.
• Waterproof & Oil-resistant:Durable silicone-insulated wire ensures longevity in harsh environments.
