UIK-16 DIN Rail Terminal Block Screw Mount, 16mm² Wire Connector, Straight-Through Strip UIK16(Blue,5 Pcs)
5.0 (89 items)
Limited Time SaleUS$32.05 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211033927 | Release Date | 2026/04/04 | List Price | US$21.36 | Model Number | 211033927 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

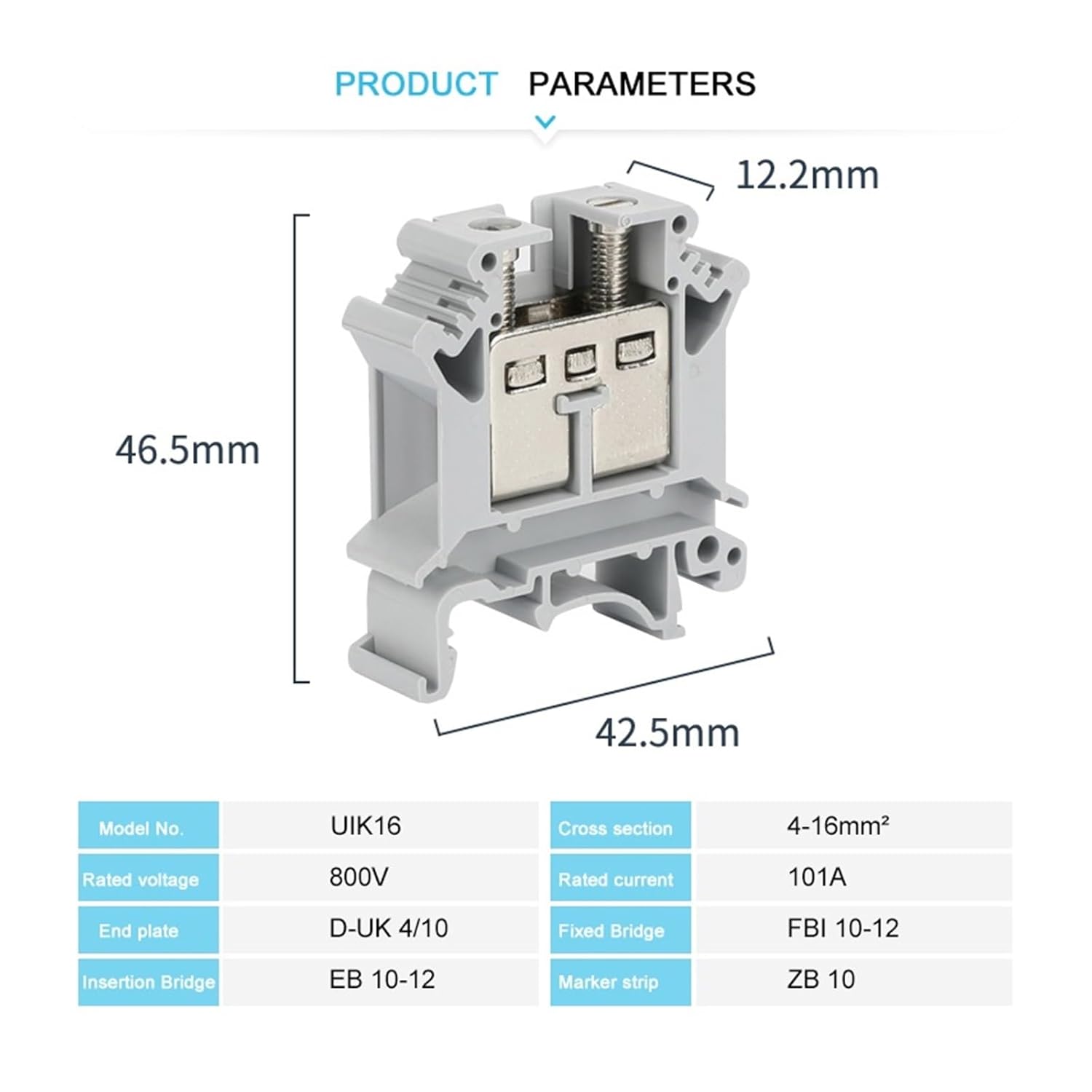

Ground Circuit Terminal BlocksUIK 16800V/101A2.5-25 mm²/4-16 mm²Length 42.5mm / Height 53mm / Width 12.2mmInsert bridge:EB 10-12Marking strips:ZB10modelUIK 16colorGray, blue, other colors can be customizedLength/Height/Width (mm)42.5/46.2/12.2Connection methodScrew connectionMaterialNylon PA66Rated voltage/current800V/101ACross-section, solid/flexible cable2.5-25 square millimeters;/4-16 square millimeters;Conductor size12-4 AWGInstallation TypeNS 35/7.5Type: Screw TerminalApplication: distribution boardApplication: Wire conductorConnection method: screwMounting type: DIN railDimensions length/height/width: 42.5/46.2/12.2mmCurrent: 101AVoltage: 800VSolid cable cross section: 0.25-25mm2Flexible cable cross section: 4-16mm2
- Ground Circuit Terminal Blocks
| Color | BLUE |
|---|---|
| Gauge | 1.0 |
| Model | YTMJPQQJI |
| Pitch | 1 Inches |
| Brand Name | YTMJPQQJI |
| Part Number | YTMJPQQJI |
| Manufacturer | YTMJPQQJI |
| Connector Type | Clamp |
| Specification Met | UL |
| Number Of Contacts | 1 |
| Item Dimensions W x H | 1"W x 1"H |
